Schema uncertainties.xsd

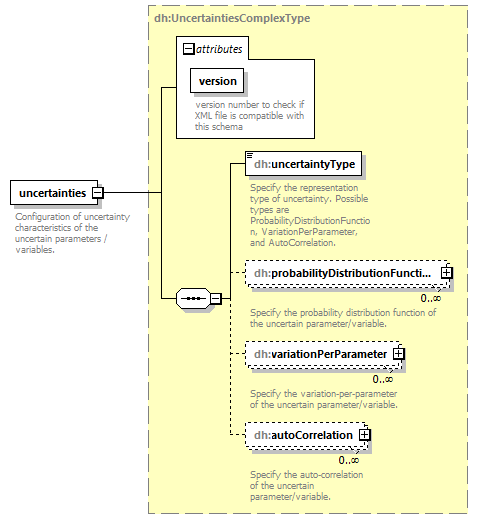

element uncertainties

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation version   dh:versionStringType   required      1.0   documentation version number to check if XML file is compatible with this schema
annotation	documentation Configuration of uncertainty characteristics of the uncertain parameters / variables.

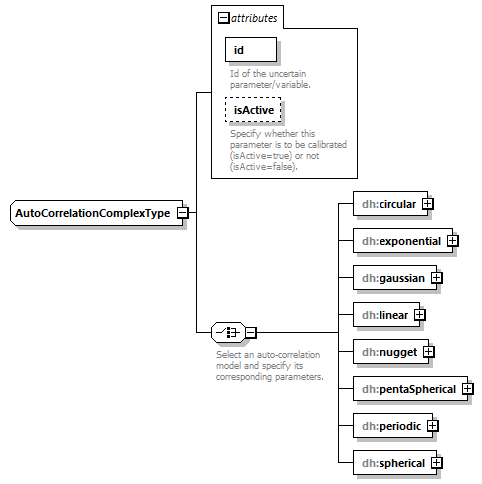

complexType AutoCorrelationComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation id   dh:idStringType   required         documentation Id of the uncertain parameter/variable. isActive   boolean   optional   true      documentation Specify whether this parameter is to be calibrated (isActive=true) or not (isActive=false).

attribute AutoCorrelationComplexType/@id

annotation

documentation Id of the uncertain parameter/variable.

attribute AutoCorrelationComplexType/@isActive

annotation

documentation Specify whether this parameter is to be calibrated (isActive=true) or not (isActive=false).

element AutoCorrelationComplexType/circular

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

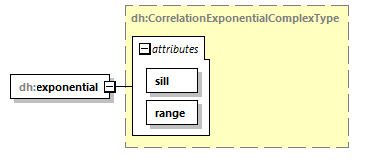

element AutoCorrelationComplexType/exponential

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

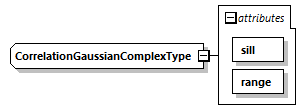

element AutoCorrelationComplexType/gaussian

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

element AutoCorrelationComplexType/linear

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

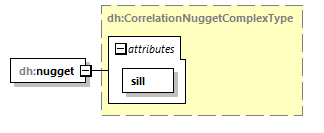

element AutoCorrelationComplexType/nugget

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required

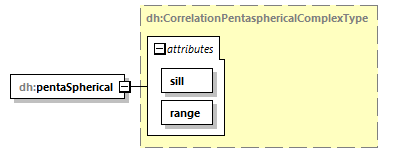

element AutoCorrelationComplexType/pentaSpherical

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

element AutoCorrelationComplexType/periodic

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

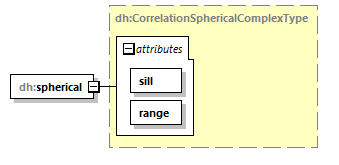

element AutoCorrelationComplexType/spherical

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

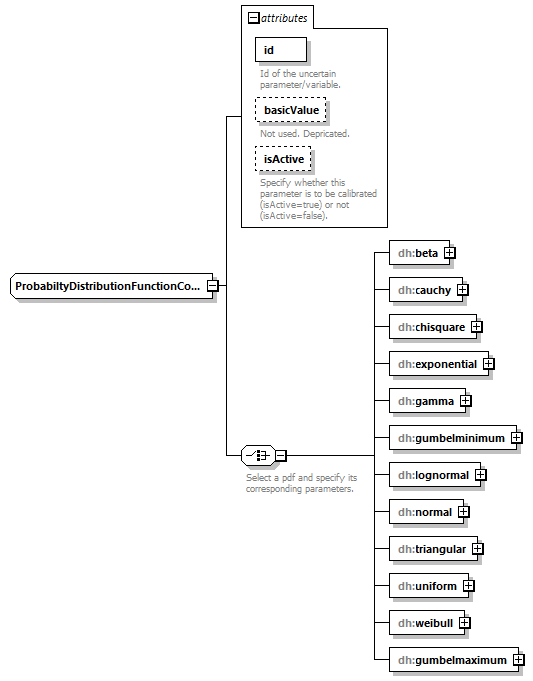

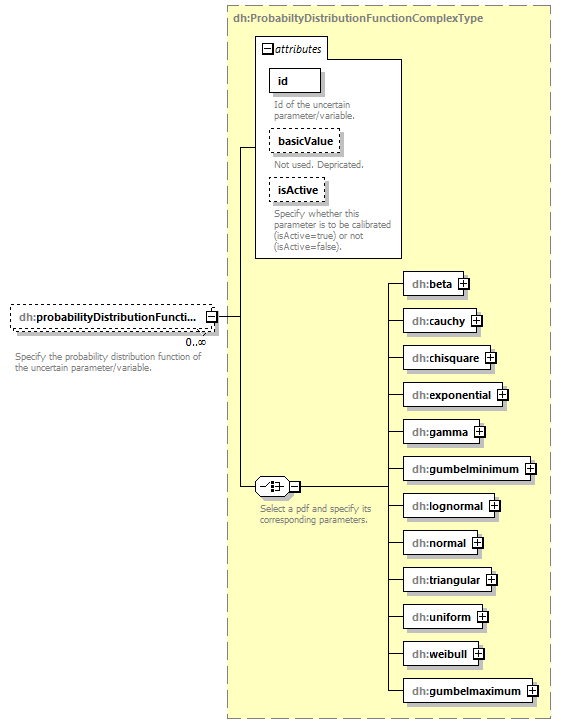

complexType ProbabiltyDistributionFunctionComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation id   dh:idStringType   required         documentation Id of the uncertain parameter/variable. basicValue   float   optional         documentation Not used. Depricated. isActive   boolean   optional   true      documentation Specify whether this parameter is to be calibrated (isActive=true) or not (isActive=false).

attribute ProbabiltyDistributionFunctionComplexType/@id

annotation

documentation Id of the uncertain parameter/variable.

attribute ProbabiltyDistributionFunctionComplexType/@basicValue

annotation

documentation Not used. Depricated.

attribute ProbabiltyDistributionFunctionComplexType/@isActive

annotation

documentation Specify whether this parameter is to be calibrated (isActive=true) or not (isActive=false).

element ProbabiltyDistributionFunctionComplexType/beta

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation alpha   float   required         beta   float   required         min   float   required         max   float   required

element ProbabiltyDistributionFunctionComplexType/cauchy

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation location   float   required         scale   float   required

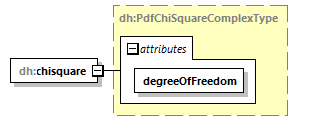

element ProbabiltyDistributionFunctionComplexType/chisquare

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation degreeOfFreedom   float   required

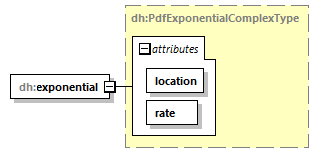

element ProbabiltyDistributionFunctionComplexType/exponential

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation location   float   required         rate   float   required

element ProbabiltyDistributionFunctionComplexType/gamma

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation shape   float   required         scale   float   required

element ProbabiltyDistributionFunctionComplexType/gumbelminimum

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation location   float   required         scale   float   required

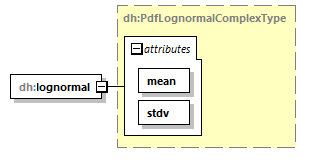

element ProbabiltyDistributionFunctionComplexType/lognormal

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation mean   float   required         stdv   float   required

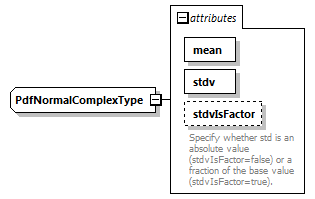

element ProbabiltyDistributionFunctionComplexType/normal

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation mean   float   required         stdv   float   required         stdvIsFactor   boolean   optional   false      documentation Specify whether std is an absolute value (stdvIsFactor=false) or a fraction of the base value (stdvIsFactor=true).

element ProbabiltyDistributionFunctionComplexType/triangular

diagram

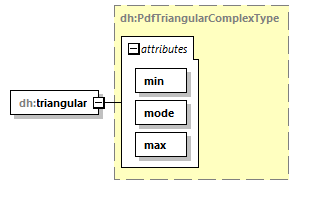

attributes	Name   Type   Use   Default   Fixed   Annotation min   float   required         mode   float   required         max   float   required

element ProbabiltyDistributionFunctionComplexType/uniform

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation min   float   required         max   float   required

element ProbabiltyDistributionFunctionComplexType/weibull

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation shape   float   required         scale   float   required

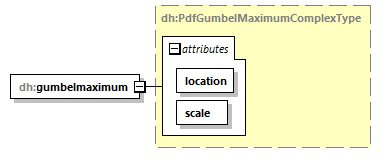

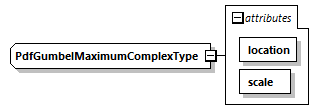

element ProbabiltyDistributionFunctionComplexType/gumbelmaximum

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation location   float   required         scale   float   required

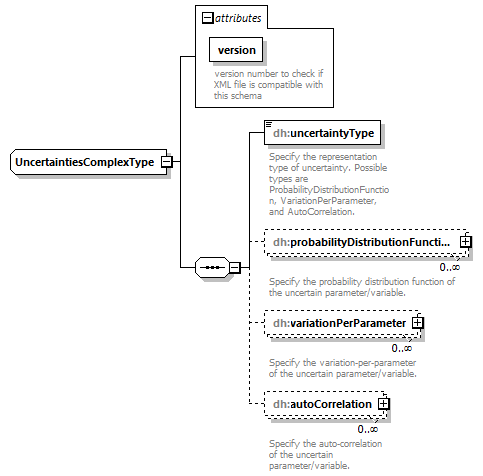

complexType UncertaintiesComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation version   dh:versionStringType   required      1.0   documentation version number to check if XML file is compatible with this schema

attribute UncertaintiesComplexType/@version

annotation

documentation version number to check if XML file is compatible with this schema

element UncertaintiesComplexType/uncertaintyType

diagram
annotation	documentation Specify the representation type of uncertainty. Possible types are ProbabilityDistributionFunction, VariationPerParameter, and AutoCorrelation.

element UncertaintiesComplexType/probabilityDistributionFunction

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation id   dh:idStringType   required         documentation Id of the uncertain parameter/variable. basicValue   float   optional         documentation Not used. Depricated. isActive   boolean   optional   true      documentation Specify whether this parameter is to be calibrated (isActive=true) or not (isActive=false).
annotation	documentation Specify the probability distribution function of the uncertain parameter/variable.

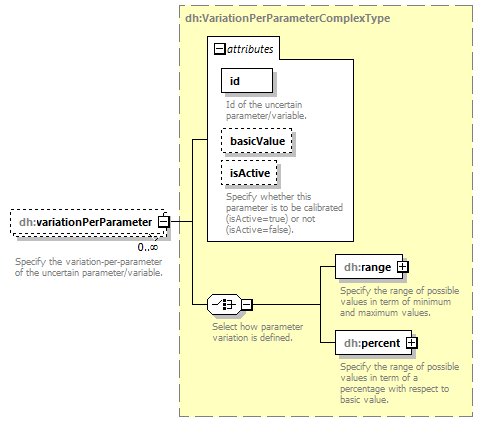

element UncertaintiesComplexType/variationPerParameter

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation id   dh:idStringType   required         documentation Id of the uncertain parameter/variable. basicValue   float   optional         isActive   boolean   optional   true      documentation Specify whether this parameter is to be calibrated (isActive=true) or not (isActive=false).
annotation	documentation Specify the variation-per-parameter of the uncertain parameter/variable.

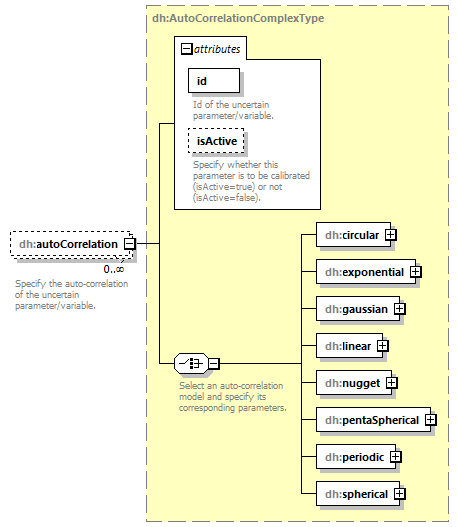

element UncertaintiesComplexType/autoCorrelation

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation id   dh:idStringType   required         documentation Id of the uncertain parameter/variable. isActive   boolean   optional   true      documentation Specify whether this parameter is to be calibrated (isActive=true) or not (isActive=false).
annotation	documentation Specify the auto-correlation of the uncertain parameter/variable.

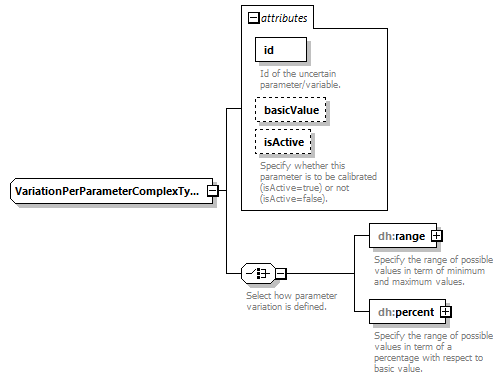

complexType VariationPerParameterComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation id   dh:idStringType   required         documentation Id of the uncertain parameter/variable. basicValue   float   optional         isActive   boolean   optional   true      documentation Specify whether this parameter is to be calibrated (isActive=true) or not (isActive=false).

attribute VariationPerParameterComplexType/@id

annotation

documentation Id of the uncertain parameter/variable.

attribute VariationPerParameterComplexType/@basicValue

---

attribute VariationPerParameterComplexType/@isActive

annotation

documentation Specify whether this parameter is to be calibrated (isActive=true) or not (isActive=false).

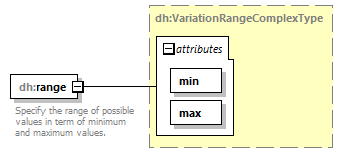

element VariationPerParameterComplexType/range

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation min   float   required         max   float   required
annotation	documentation Specify the range of possible values in term of minimum and maximum values.

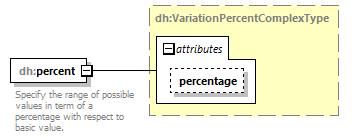

element VariationPerParameterComplexType/percent

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation percentage   float   optional
annotation	documentation Specify the range of possible values in term of a percentage with respect to basic value.

simpleType uncertaintyEnumStringType

---

complexType ArgumentsComplexType

diagram

element ArgumentsComplexType/argument

diagram

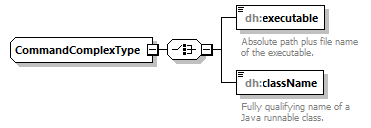

complexType CommandComplexType

diagram

element CommandComplexType/executable

diagram
annotation	documentation Absolute path plus file name of the executable.

element CommandComplexType/className

diagram
annotation	documentation Fully qualifying name of a Java runnable class.

complexType DateTimeComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation date   date   required         time   time   required

attribute DateTimeComplexType/@date

---

attribute DateTimeComplexType/@time

---

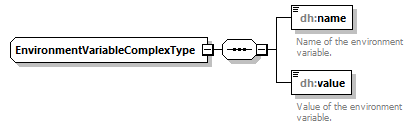

complexType EnvironmentVariableComplexType

diagram

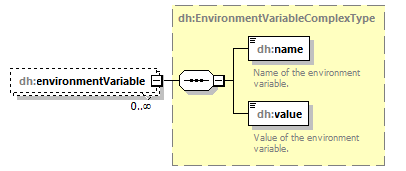

element EnvironmentVariableComplexType/name

diagram
annotation	documentation Name of the environment variable.

element EnvironmentVariableComplexType/value

diagram
annotation	documentation Value of the environment variable.

complexType EnvironmentVariablesComplexType

diagram

element EnvironmentVariablesComplexType/environmentVariable

diagram

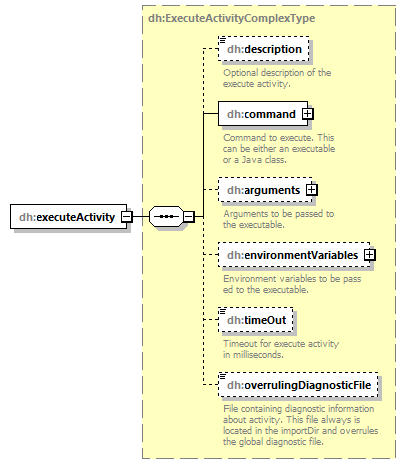

complexType ExecuteActivityComplexType

diagram

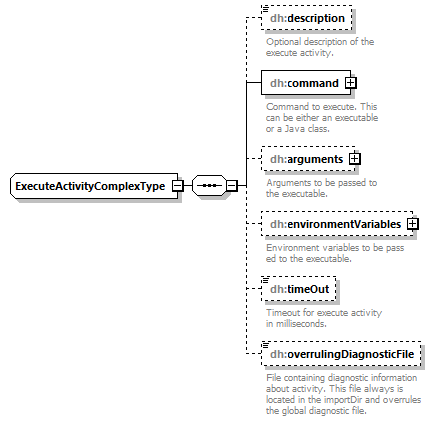

element ExecuteActivityComplexType/description

diagram
annotation	documentation Optional description of the execute activity.

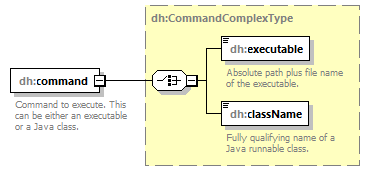

element ExecuteActivityComplexType/command

diagram
annotation	documentation Command to execute. This can be either an executable or a Java class.

element ExecuteActivityComplexType/arguments

diagram
annotation	documentation Arguments to be passed to the executable.

element ExecuteActivityComplexType/environmentVariables

diagram
annotation	documentation Environment variables to be pass ed to the executable.

element ExecuteActivityComplexType/timeOut

diagram
annotation	documentation Timeout for execute activity in milliseconds.

element ExecuteActivityComplexType/overrulingDiagnosticFile

diagram
annotation	documentation File containing diagnostic information about activity. This file always is located in the importDir and overrules the global diagnostic file.

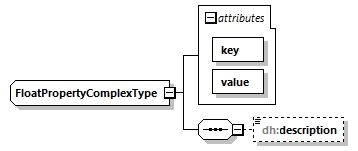

complexType FloatPropertyComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation key   string   required         value   float   required

attribute FloatPropertyComplexType/@key

---

attribute FloatPropertyComplexType/@value

---

element FloatPropertyComplexType/description

diagram

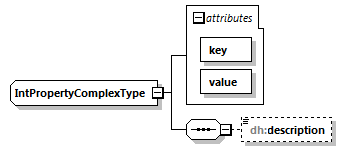

complexType IntPropertyComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation key   string   required         value   int   required

attribute IntPropertyComplexType/@key

---

attribute IntPropertyComplexType/@value

---

element IntPropertyComplexType/description

diagram

complexType ModelComplexType

diagram

element ModelComplexType/executeActivity

diagram

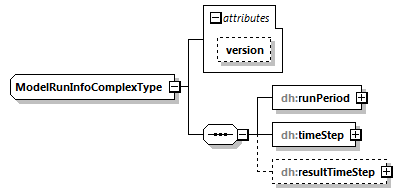

complexType ModelRunInfoComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation version   dh:versionStringType         1.2

attribute ModelRunInfoComplexType/@version

---

element ModelRunInfoComplexType/runPeriod

diagram

element ModelRunInfoComplexType/timeStep

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation unit   dh:timeStepUnitEnumStringType   required         divider   int   optional   1      multiplier   int   optional   1

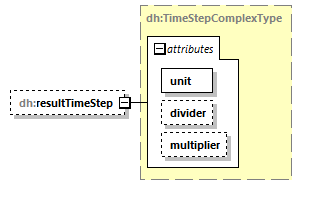

element ModelRunInfoComplexType/resultTimeStep

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation unit   dh:timeStepUnitEnumStringType   required         divider   int   optional   1      multiplier   int   optional   1

complexType ModuleComplexType

diagram

element ModuleComplexType/workingDirectory

diagram

element ModuleComplexType/executeActivity

diagram

complexType PeriodComplexType

diagram

element PeriodComplexType/startDate

diagram

element PeriodComplexType/endDate

diagram

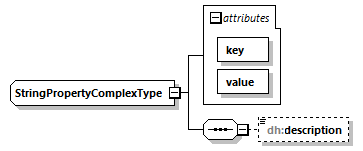

complexType StringPropertyComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation key   string   required         value   string   required

attribute StringPropertyComplexType/@key

---

attribute StringPropertyComplexType/@value

---

element StringPropertyComplexType/description

diagram

complexType TimeSeedSettingsComplexType

diagram

element TimeSeedSettingsComplexType/start

diagram

element TimeSeedSettingsComplexType/end

diagram

complexType TimeSpanComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation unit   dh:timeUnitEnumStringType   required         divider   int   optional   1      multiplier   int   optional   1

attribute TimeSpanComplexType/@unit

---

attribute TimeSpanComplexType/@divider

---

attribute TimeSpanComplexType/@multiplier

---

complexType TimeStepComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation unit   dh:timeStepUnitEnumStringType   required         divider   int   optional   1      multiplier   int   optional   1
annotation	documentation The timeunit element has three attributes, unit and devider and multiplier.             the unit is second, minute, hour, week, month year.             The devider attribute is optional (default = 1).

attribute TimeStepComplexType/@unit

---

attribute TimeStepComplexType/@divider

---

attribute TimeStepComplexType/@multiplier

---

simpleType dataTypeEnumStringType

annotation

documentation to define the type of the data (double, flow, string, boolean etc

simpleType directoryStringType

---

simpleType fileLocationTypeEnumStringType

annotation

documentation type: either file or directory

simpleType fileStringType

---

simpleType idIntType

---

simpleType idStringType

---

simpleType indexStringType

annotation

documentation index (e.g. 12) or index line (e.g. 11:18) in an array

simpleType mappingTypeEnumStringType

---

simpleType nameStringType

---

simpleType nonNegativeDouble

---

simpleType percentageType

---

simpleType statePartEnumStringType

---

simpleType timeOutIntegerType

---

simpleType timeStepUnitEnumStringType

annotation

documentation Same as timeUnitEnumStringType plus the nonequidistant time step

simpleType timeUnitEnumStringType

---

simpleType timeZoneSimpleType

annotation

documentation The timeZone (in decimal hours shift from GMT)             e.g. -1.0 or 3.5. If not present GMT is assumed

simpleType variableStringType

---

simpleType versionStringType

---

complexType PdfBetaComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation alpha   float   required         beta   float   required         min   float   required         max   float   required

attribute PdfBetaComplexType/@alpha

---

attribute PdfBetaComplexType/@beta

---

attribute PdfBetaComplexType/@min

---

attribute PdfBetaComplexType/@max

---

complexType PdfCauchyComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation location   float   required         scale   float   required

attribute PdfCauchyComplexType/@location

---

attribute PdfCauchyComplexType/@scale

---

complexType PdfChiSquareComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation degreeOfFreedom   float   required

attribute PdfChiSquareComplexType/@degreeOfFreedom

---

complexType PdfExponentialComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation location   float   required         rate   float   required

attribute PdfExponentialComplexType/@location

---

attribute PdfExponentialComplexType/@rate

---

complexType PdfGammaComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation shape   float   required         scale   float   required

attribute PdfGammaComplexType/@shape

---

attribute PdfGammaComplexType/@scale

---

complexType PdfGumbelMaximumComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation location   float   required         scale   float   required

attribute PdfGumbelMaximumComplexType/@location

---

attribute PdfGumbelMaximumComplexType/@scale

---

complexType PdfGumbelMinimumComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation location   float   required         scale   float   required

attribute PdfGumbelMinimumComplexType/@location

---

attribute PdfGumbelMinimumComplexType/@scale

---

complexType PdfLognormalComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation mean   float   required         stdv   float   required

attribute PdfLognormalComplexType/@mean

---

attribute PdfLognormalComplexType/@stdv

---

complexType PdfNormalComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation mean   float   required         stdv   float   required         stdvIsFactor   boolean   optional   false      documentation Specify whether std is an absolute value (stdvIsFactor=false) or a fraction of the base value (stdvIsFactor=true).

attribute PdfNormalComplexType/@mean

---

attribute PdfNormalComplexType/@stdv

---

attribute PdfNormalComplexType/@stdvIsFactor

annotation

documentation Specify whether std is an absolute value (stdvIsFactor=false) or a fraction of the base value (stdvIsFactor=true).

complexType PdfTriangularComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation min   float   required         mode   float   required         max   float   required

attribute PdfTriangularComplexType/@min

---

attribute PdfTriangularComplexType/@mode

---

attribute PdfTriangularComplexType/@max

---

complexType PdfUniformComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation min   float   required         max   float   required

attribute PdfUniformComplexType/@min

---

attribute PdfUniformComplexType/@max

---

complexType PdfWeibullComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation shape   float   required         scale   float   required

attribute PdfWeibullComplexType/@shape

---

attribute PdfWeibullComplexType/@scale

---

complexType CorrelationCircularComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

attribute CorrelationCircularComplexType/@sill

---

attribute CorrelationCircularComplexType/@range

---

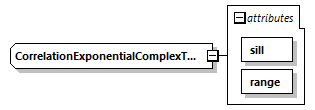

complexType CorrelationExponentialComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

attribute CorrelationExponentialComplexType/@sill

---

attribute CorrelationExponentialComplexType/@range

---

complexType CorrelationGaussianComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

attribute CorrelationGaussianComplexType/@sill

---

attribute CorrelationGaussianComplexType/@range

---

complexType CorrelationLinearComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

attribute CorrelationLinearComplexType/@sill

---

attribute CorrelationLinearComplexType/@range

---

complexType CorrelationNuggetComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required

attribute CorrelationNuggetComplexType/@sill

---

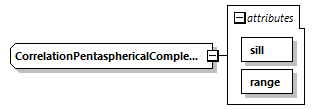

complexType CorrelationPentasphericalComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

attribute CorrelationPentasphericalComplexType/@sill

---

attribute CorrelationPentasphericalComplexType/@range

---

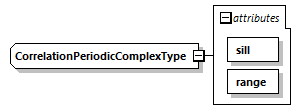

complexType CorrelationPeriodicComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

attribute CorrelationPeriodicComplexType/@sill

---

attribute CorrelationPeriodicComplexType/@range

---

complexType CorrelationSphericalComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation sill   float   required         range   float   required

attribute CorrelationSphericalComplexType/@sill

---

attribute CorrelationSphericalComplexType/@range

---

complexType VariationPercentComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation percentage   float   optional

attribute VariationPercentComplexType/@percentage

---

complexType VariationRangeComplexType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation min   float   required         max   float   required

attribute VariationRangeComplexType/@min

---

attribute VariationRangeComplexType/@max

---

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
