Schema timeSeriesNoiseModel.xsd

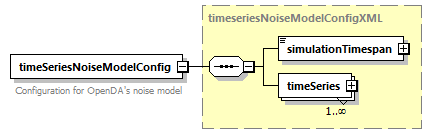

element timeSeriesNoiseModelConfig

diagram
annotation	documentation Configuration for OpenDA's noise model

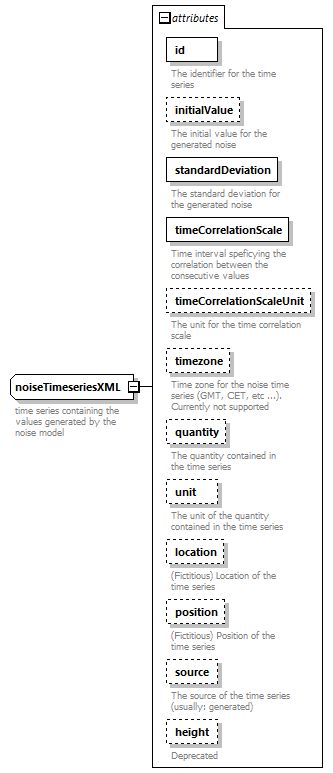

complexType noiseTimeseriesXML

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         documentation The identifier for the time series initialValue   xs:double   optional   0.0      documentation The initial value for the generated noise standardDeviation   xs:double   required         documentation The standard deviation for the generated noise timeCorrelationScale   xs:double   required         documentation Time interval speficying the correlation between the consecutive values timeCorrelationScaleUnit   timeCorrelationScaleUnitXML   optional   days      documentation The unit for the time correlation scale timezone   xs:string   optional         documentation Time zone for the noise time series (GMT, CET, etc ...). Currently not supported quantity   xs:string   optional         documentation The quantity contained in the time series unit   xs:string   optional         documentation The unit of the quantity contained in the time series location   xs:string   optional         documentation (Fictitious) Location of the time series position   xs:string   optional         documentation (Fictitious) Position of the time series source   xs:string   optional         documentation The source of the time series (usually: generated) height   xs:string   optional         documentation Deprecated
annotation	documentation time series containing the values generated by the noise model

attribute noiseTimeseriesXML/@id

annotation

documentation The identifier for the time series

attribute noiseTimeseriesXML/@initialValue

annotation

documentation The initial value for the generated noise

attribute noiseTimeseriesXML/@standardDeviation

annotation

documentation The standard deviation for the generated noise

attribute noiseTimeseriesXML/@timeCorrelationScale

annotation

documentation Time interval speficying the correlation between the consecutive values

attribute noiseTimeseriesXML/@timeCorrelationScaleUnit

annotation

documentation The unit for the time correlation scale

attribute noiseTimeseriesXML/@timezone

annotation

documentation Time zone for the noise time series (GMT, CET, etc ...). Currently not supported

attribute noiseTimeseriesXML/@quantity

annotation

documentation The quantity contained in the time series

attribute noiseTimeseriesXML/@unit

annotation

documentation The unit of the quantity contained in the time series

attribute noiseTimeseriesXML/@location

annotation

documentation (Fictitious) Location of the time series

attribute noiseTimeseriesXML/@position

annotation

documentation (Fictitious) Position of the time series

attribute noiseTimeseriesXML/@source

annotation

documentation The source of the time series (usually: generated)

attribute noiseTimeseriesXML/@height

annotation

documentation Deprecated

complexType timeseriesNoiseModelConfigXML

diagram

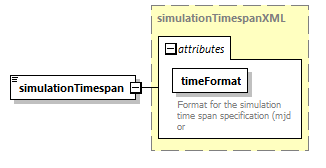

element timeseriesNoiseModelConfigXML/simulationTimespan

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation timeFormat   xs:string   required         documentation Format for the simulation time span specification (mjd or

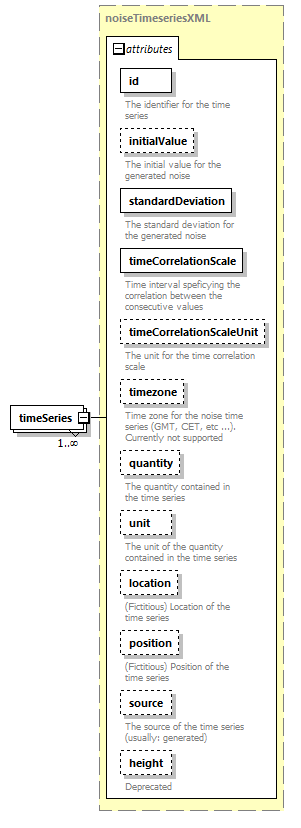

element timeseriesNoiseModelConfigXML/timeSeries

diagram

attributes

Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         documentation The identifier for the time series initialValue   xs:double   optional   0.0      documentation The initial value for the generated noise standardDeviation   xs:double   required         documentation The standard deviation for the generated noise timeCorrelationScale   xs:double   required         documentation Time interval speficying the correlation between the consecutive values timeCorrelationScaleUnit   timeCorrelationScaleUnitXML   optional   days      documentation The unit for the time correlation scale timezone   xs:string   optional         documentation Time zone for the noise time series (GMT, CET, etc ...). Currently not supported quantity   xs:string   optional         documentation The quantity contained in the time series unit   xs:string   optional         documentation The unit of the quantity contained in the time series location   xs:string   optional         documentation (Fictitious) Location of the time series position   xs:string   optional         documentation (Fictitious) Position of the time series source   xs:string   optional         documentation The source of the time series (usually: generated) height   xs:string   optional         documentation Deprecated

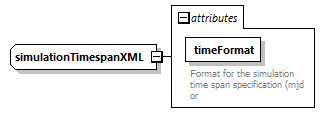

complexType simulationTimespanXML

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation timeFormat   xs:string   required         documentation Format for the simulation time span specification (mjd or

attribute simulationTimespanXML/@timeFormat

annotation

documentation Format for the simulation time span specification (mjd or

simpleType timeCorrelationScaleUnitXML

---

simpleType timespanFormatXML

---

simpleType timespanXML

---
