Schema simplexConfig.xsd

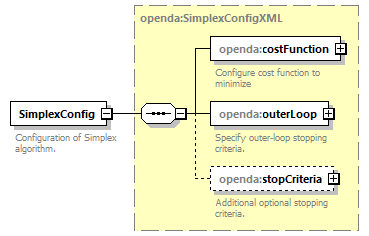

element SimplexConfig

diagram
annotation	documentation Configuration of Simplex algorithm.

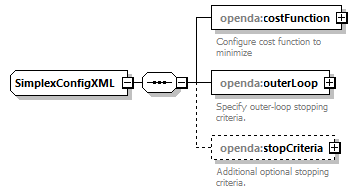

complexType SimplexConfigXML

diagram

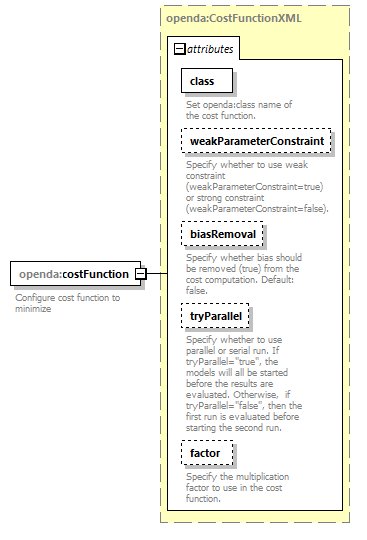

element SimplexConfigXML/costFunction

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation class   derived by: xs:string   required         documentation Set openda:class name of the cost function. weakParameterConstraint   xs:boolean   optional   false      documentation Specify whether to use weak constraint (weakParameterConstraint=true) or strong constraint (weakParameterConstraint=false). biasRemoval               documentation Specify whether bias should be removed (true) from the cost computation. Default: false. tryParallel   xs:boolean   optional   false      documentation Specify whether to use parallel or serial run. If tryParallel="true", the models will all be started before the results are evaluated. Otherwise,  if tryParallel="false", then the first run is evaluated before starting the second run. factor   xs:double   optional   0.5      documentation Specify the multiplication factor to use in the cost function.
annotation	documentation Configure cost function to minimize

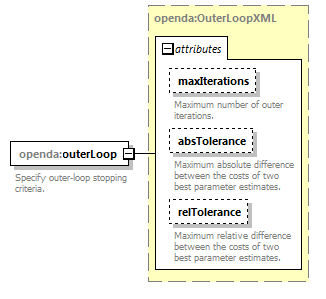

element SimplexConfigXML/outerLoop

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation maxIterations   xs:integer   optional   100      documentation Maximum number of outer iterations. absTolerance   xs:float   optional   0.01      documentation Maximum absolute difference between the costs of two best parameter estimates. relTolerance   xs:float   optional   0.01      documentation Maximum relative difference between the costs of two best parameter estimates.
annotation	documentation Specify outer-loop stopping criteria.

element SimplexConfigXML/stopCriteria

diagram
annotation	documentation Additional optional stopping criteria.

complexType OuterLoopXML

diagram

attributes

Name   Type   Use   Default   Fixed   Annotation maxIterations   xs:integer   optional   100      documentation Maximum number of outer iterations. absTolerance   xs:float   optional   0.01      documentation Maximum absolute difference between the costs of two best parameter estimates. relTolerance   xs:float   optional   0.01      documentation Maximum relative difference between the costs of two best parameter estimates.

attribute OuterLoopXML/@maxIterations

annotation

documentation Maximum number of outer iterations.

attribute OuterLoopXML/@absTolerance

annotation

documentation Maximum absolute difference between the costs of two best parameter estimates.

attribute OuterLoopXML/@relTolerance

annotation

documentation Maximum relative difference between the costs of two best parameter estimates.

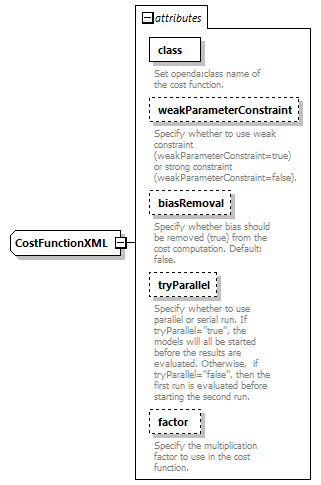

complexType CostFunctionXML

diagram

attributes

Name   Type   Use   Default   Fixed   Annotation class   derived by: xs:string   required         documentation Set openda:class name of the cost function. weakParameterConstraint   xs:boolean   optional   false      documentation Specify whether to use weak constraint (weakParameterConstraint=true) or strong constraint (weakParameterConstraint=false). biasRemoval               documentation Specify whether bias should be removed (true) from the cost computation. Default: false. tryParallel   xs:boolean   optional   false      documentation Specify whether to use parallel or serial run. If tryParallel="true", the models will all be started before the results are evaluated. Otherwise,  if tryParallel="false", then the first run is evaluated before starting the second run. factor   xs:double   optional   0.5      documentation Specify the multiplication factor to use in the cost function.

attribute CostFunctionXML/@class

annotation

documentation Set openda:class name of the cost function.

attribute CostFunctionXML/@weakParameterConstraint

annotation

documentation Specify whether to use weak constraint (weakParameterConstraint=true) or strong constraint (weakParameterConstraint=false).

attribute CostFunctionXML/@biasRemoval

annotation

documentation Specify whether bias should be removed (true) from the cost computation. Default: false.

attribute CostFunctionXML/@tryParallel

annotation

documentation Specify whether to use parallel or serial run. If tryParallel="true", the models will all be started before the results are evaluated. Otherwise,  if tryParallel="false", then the first run is evaluated before starting the second run.

attribute CostFunctionXML/@factor

annotation

documentation Specify the multiplication factor to use in the cost function.

complexType additionalStopCriteria

diagram
annotation	documentation Additional optional stopping criteria.

element additionalStopCriteria/stopCriterion

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation threshold      required         documentation Threshold value of the stopping parameter. class      required         documentation Java class of the corresponding stopping criterion
annotation	documentation A stopping criterion

attribute additionalStopCriteria/stopCriterion/@threshold

annotation

documentation Threshold value of the stopping parameter.

attribute additionalStopCriteria/stopCriterion/@class

annotation

documentation Java class of the corresponding stopping criterion
