Schema sequentialEnsembleSimulation.xsd

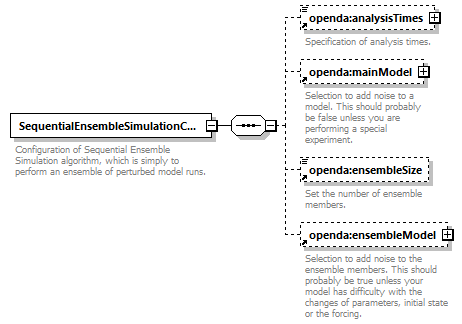

element SequentialEnsembleSimulationConfig

diagram
annotation	documentation Configuration of Sequential Ensemble Simulation algorithm, which is simply to perform an ensemble of perturbed model runs.

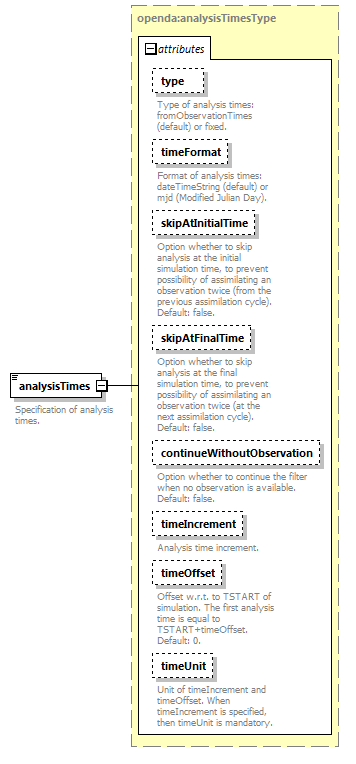

element analysisTimes

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation type   derived by: xs:string   optional   fromObservationTimes      documentation Type of analysis times: fromObservationTimes (default) or fixed. timeFormat   derived by: xs:string   optional   dateTimeString      documentation Format of analysis times: dateTimeString (default) or mjd (Modified Julian Day). skipAtInitialTime   xs:boolean   optional         documentation Option whether to skip analysis at the initial simulation time, to prevent possibility of assimilating an observation twice (from the previous assimilation cycle). Default: false. skipAtFinalTime   xs:boolean   optional         documentation Option whether to skip analysis at the final simulation time, to prevent possibility of assimilating an observation twice (at the next assimilation cycle). Default: false. continueWithoutObservation   xs:boolean   optional         documentation Option whether to continue the filter when no observation is available. Default: false. timeIncrement               documentation Analysis time increment. timeOffset               documentation Offset w.r.t. to TSTART of simulation. The first analysis time is equal to TSTART+timeOffset. Default: 0. timeUnit               documentation Unit of timeIncrement and timeOffset. When timeIncrement is specified, then timeUnit is mandatory.
annotation	documentation Specification of analysis times.

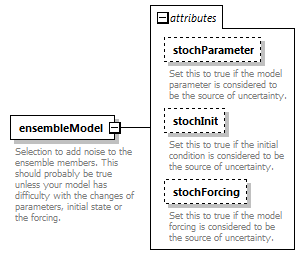

element ensembleModel

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation stochParameter   xs:boolean   optional   false      documentation Set this to true if the model parameter is considered to be the source of uncertainty. stochInit   xs:boolean   optional   true      documentation Set this to true if the initial condition is considered to be the source of uncertainty. stochForcing   xs:boolean   optional   true      documentation Set this to true if the model forcing is considered to be the source of uncertainty.
annotation	documentation Selection to add noise to the ensemble members. This should probably be true unless your model has difficulty with the changes of parameters, initial state or the forcing.

attribute ensembleModel/@stochParameter

annotation

documentation Set this to true if the model parameter is considered to be the source of uncertainty.

attribute ensembleModel/@stochInit

annotation

documentation Set this to true if the initial condition is considered to be the source of uncertainty.

attribute ensembleModel/@stochForcing

annotation

documentation Set this to true if the model forcing is considered to be the source of uncertainty.

element ensembleSize

diagram
annotation	documentation Set the number of ensemble members.

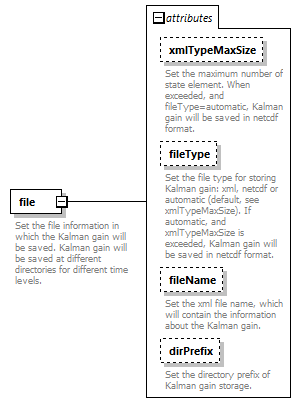

element file

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation xmlTypeMaxSize   xs:integer   optional   40      documentation Set the maximum number of state element. When exceeded, and fileType=automatic, Kalman gain will be saved in netcdf format. fileType   derived by: xs:string   optional   automatic      documentation Set the file type for storing Kalman gain: xml, netcdf or automatic (default, see xmlTypeMaxSize). If automatic, and xmlTypeMaxSize is exceeded, Kalman gain will be saved in netcdf format. fileName   derived by: xs:string   optional   kalmanGainStorage.xml      documentation Set the xml file name, which will contain the information about the Kalman gain. dirPrefix   derived by: xs:string   optional   kgStorage_      documentation Set the directory prefix of Kalman gain storage.
annotation	documentation Set the file information in which the Kalman gain will be saved. Kalman gain will be saved at different directories for different time levels.

attribute file/@xmlTypeMaxSize

annotation

documentation Set the maximum number of state element. When exceeded, and fileType=automatic, Kalman gain will be saved in netcdf format.

attribute file/@fileType

annotation

documentation Set the file type for storing Kalman gain: xml, netcdf or automatic (default, see xmlTypeMaxSize). If automatic, and xmlTypeMaxSize is exceeded, Kalman gain will be saved in netcdf format.

attribute file/@fileName

annotation

documentation Set the xml file name, which will contain the information about the Kalman gain.

attribute file/@dirPrefix

annotation

documentation Set the directory prefix of Kalman gain storage.

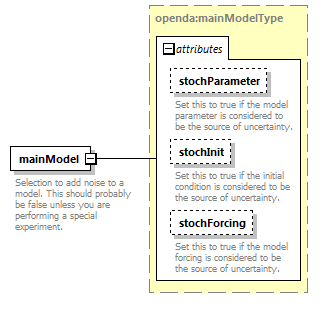

element mainModel

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation stochParameter   xs:boolean   optional   false      documentation Set this to true if the model parameter is considered to be the source of uncertainty. stochInit   xs:boolean   optional   false      documentation Set this to true if the initial condition is considered to be the source of uncertainty. stochForcing   xs:boolean   optional   false      documentation Set this to true if the model forcing is considered to be the source of uncertainty.
annotation	documentation Selection to add noise to a model. This should probably be false unless you are performing a special experiment.

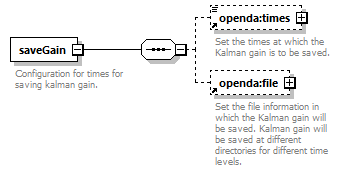

element saveGain

diagram
annotation	documentation Configuration for times for saving kalman gain.

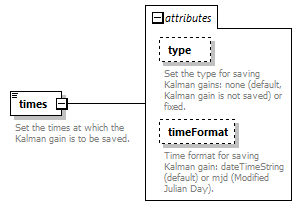

element times

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation type   derived by: xs:string   optional   none      documentation Set the type for saving Kalman gains: none (default, Kalman gain is not saved) or fixed. timeFormat   derived by: xs:string   optional   dateTimeString      documentation Time format for saving Kalman gain: dateTimeString (default) or mjd (Modified Julian Day).
annotation	documentation Set the times at which the Kalman gain is to be saved.

attribute times/@type

annotation

documentation Set the type for saving Kalman gains: none (default, Kalman gain is not saved) or fixed.

attribute times/@timeFormat

annotation

documentation Time format for saving Kalman gain: dateTimeString (default) or mjd (Modified Julian Day).

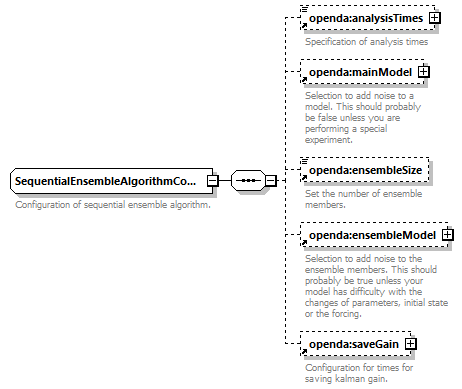

complexType SequentialEnsembleAlgorithmConfigType

diagram
annotation	documentation Configuration of sequential ensemble algorithm.

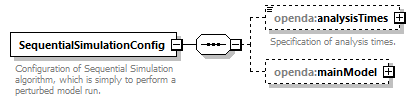

element SequentialSimulationConfig

diagram
annotation	documentation Configuration of Sequential Simulation algorithm, which is simply to perform a perturbed model run.

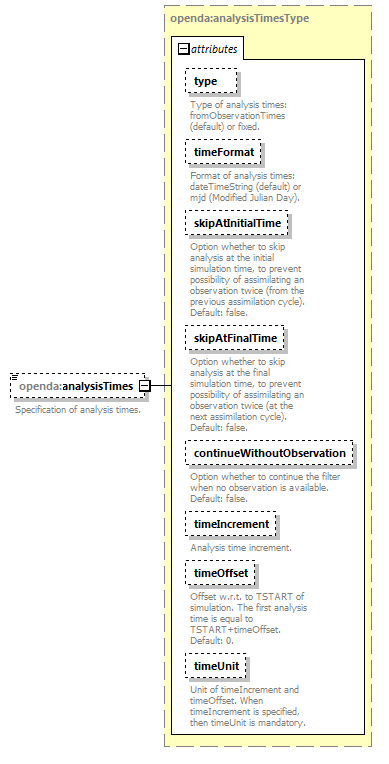

element SequentialSimulationConfig/analysisTimes

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation type   derived by: xs:string   optional   fromObservationTimes      documentation Type of analysis times: fromObservationTimes (default) or fixed. timeFormat   derived by: xs:string   optional   dateTimeString      documentation Format of analysis times: dateTimeString (default) or mjd (Modified Julian Day). skipAtInitialTime   xs:boolean   optional         documentation Option whether to skip analysis at the initial simulation time, to prevent possibility of assimilating an observation twice (from the previous assimilation cycle). Default: false. skipAtFinalTime   xs:boolean   optional         documentation Option whether to skip analysis at the final simulation time, to prevent possibility of assimilating an observation twice (at the next assimilation cycle). Default: false. continueWithoutObservation   xs:boolean   optional         documentation Option whether to continue the filter when no observation is available. Default: false. timeIncrement               documentation Analysis time increment. timeOffset               documentation Offset w.r.t. to TSTART of simulation. The first analysis time is equal to TSTART+timeOffset. Default: 0. timeUnit               documentation Unit of timeIncrement and timeOffset. When timeIncrement is specified, then timeUnit is mandatory.
annotation	documentation Specification of analysis times.

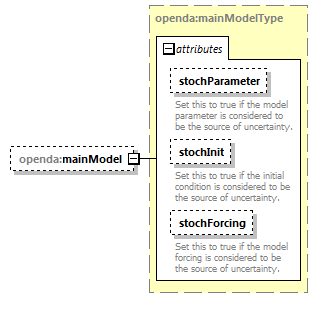

element SequentialSimulationConfig/mainModel

diagram

attributes

Name   Type   Use   Default   Fixed   Annotation stochParameter   xs:boolean   optional   false      documentation Set this to true if the model parameter is considered to be the source of uncertainty. stochInit   xs:boolean   optional   false      documentation Set this to true if the initial condition is considered to be the source of uncertainty. stochForcing   xs:boolean   optional   false      documentation Set this to true if the model forcing is considered to be the source of uncertainty.

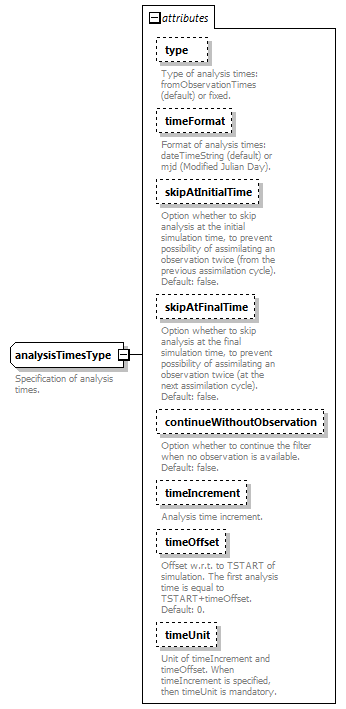

complexType analysisTimesType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation type   derived by: xs:string   optional   fromObservationTimes      documentation Type of analysis times: fromObservationTimes (default) or fixed. timeFormat   derived by: xs:string   optional   dateTimeString      documentation Format of analysis times: dateTimeString (default) or mjd (Modified Julian Day). skipAtInitialTime   xs:boolean   optional         documentation Option whether to skip analysis at the initial simulation time, to prevent possibility of assimilating an observation twice (from the previous assimilation cycle). Default: false. skipAtFinalTime   xs:boolean   optional         documentation Option whether to skip analysis at the final simulation time, to prevent possibility of assimilating an observation twice (at the next assimilation cycle). Default: false. continueWithoutObservation   xs:boolean   optional         documentation Option whether to continue the filter when no observation is available. Default: false. timeIncrement               documentation Analysis time increment. timeOffset               documentation Offset w.r.t. to TSTART of simulation. The first analysis time is equal to TSTART+timeOffset. Default: 0. timeUnit               documentation Unit of timeIncrement and timeOffset. When timeIncrement is specified, then timeUnit is mandatory.
annotation	documentation Specification of analysis times.

attribute analysisTimesType/@type

annotation

documentation Type of analysis times: fromObservationTimes (default) or fixed.

attribute analysisTimesType/@timeFormat

annotation

documentation Format of analysis times: dateTimeString (default) or mjd (Modified Julian Day).

attribute analysisTimesType/@skipAtInitialTime

annotation

documentation Option whether to skip analysis at the initial simulation time, to prevent possibility of assimilating an observation twice (from the previous assimilation cycle). Default: false.

attribute analysisTimesType/@skipAtFinalTime

annotation

documentation Option whether to skip analysis at the final simulation time, to prevent possibility of assimilating an observation twice (at the next assimilation cycle). Default: false.

attribute analysisTimesType/@continueWithoutObservation

annotation

documentation Option whether to continue the filter when no observation is available. Default: false.

attribute analysisTimesType/@timeIncrement

annotation

documentation Analysis time increment.

attribute analysisTimesType/@timeOffset

annotation

documentation Offset w.r.t. to TSTART of simulation. The first analysis time is equal to TSTART+timeOffset. Default: 0.

attribute analysisTimesType/@timeUnit

annotation

documentation Unit of timeIncrement and timeOffset. When timeIncrement is specified, then timeUnit is mandatory.

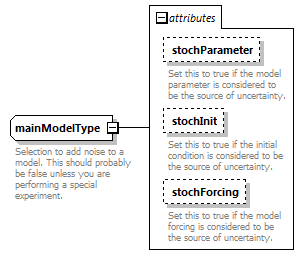

complexType mainModelType

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation stochParameter   xs:boolean   optional   false      documentation Set this to true if the model parameter is considered to be the source of uncertainty. stochInit   xs:boolean   optional   false      documentation Set this to true if the initial condition is considered to be the source of uncertainty. stochForcing   xs:boolean   optional   false      documentation Set this to true if the model forcing is considered to be the source of uncertainty.
annotation	documentation Selection to add noise to a model. This should probably be false unless you are performing a special experiment.

attribute mainModelType/@stochParameter

annotation

documentation Set this to true if the model parameter is considered to be the source of uncertainty.

attribute mainModelType/@stochInit

annotation

documentation Set this to true if the initial condition is considered to be the source of uncertainty.

attribute mainModelType/@stochForcing

annotation

documentation Set this to true if the model forcing is considered to be the source of uncertainty.

simpleType ST_analysisTimes

---

simpleType ST_times

---
