Schema openDaStochObserver.xsd

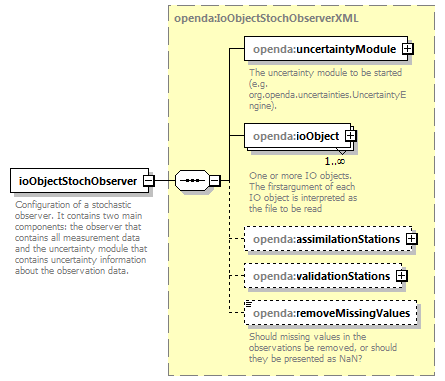

element ioObjectStochObserver

diagram
annotation	documentation Configuration of a stochastic observer. It contains two main components: the observer that contains all measurement data and the uncertainty module that contains uncertainty information about the observation data.

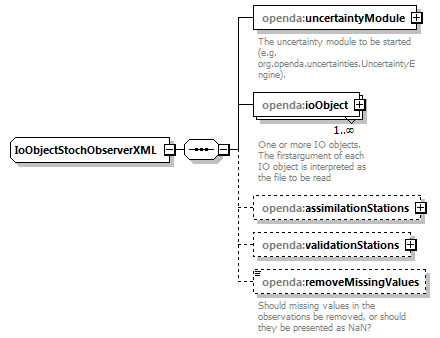

complexType IoObjectStochObserverXML

diagram

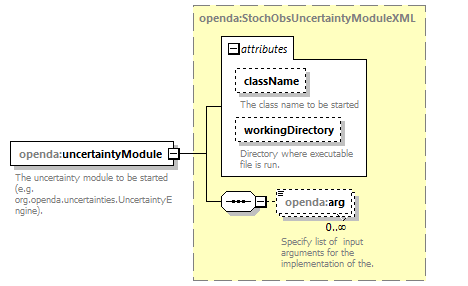

element IoObjectStochObserverXML/uncertaintyModule

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation className   xs:string            documentation The class name to be started workingDirectory   xs:string   optional         documentation Directory where executable file is run.
annotation	documentation The uncertainty module to be started (e.g. org.openda.uncertainties.UncertaintyEngine).

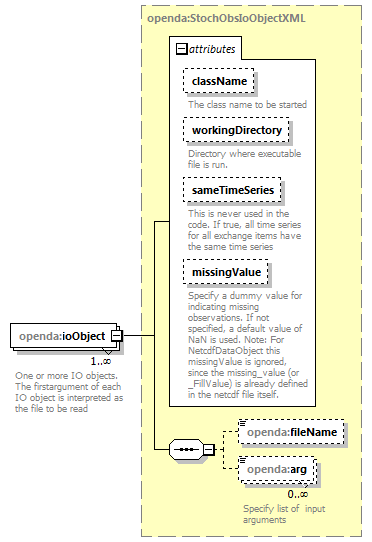

element IoObjectStochObserverXML/ioObject

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation className   xs:string            documentation The class name to be started workingDirectory   xs:string   optional         documentation Directory where executable file is run. sameTimeSeries   xs:string   optional   false      documentation This is never used in the code. If true, all time series for all exchange items have the same time series missingValue   xs:double   optional         documentation Specify a dummy value for indicating missing observations. If not specified, a default value of NaN is used. Note: For NetcdfDataObject this missingValue is ignored, since the missing_value (or _FillValue) is already defined in the netcdf file itself.
annotation	documentation One or more IO objects. The firstargument of each IO object is interpreted as the file to be read

element IoObjectStochObserverXML/assimilationStations

diagram

element IoObjectStochObserverXML/validationStations

diagram

element IoObjectStochObserverXML/removeMissingValues

diagram
annotation	documentation Should missing values in the observations be removed, or should they be presented as NaN?

complexType StochObservationStationsXML

diagram

element StochObservationStationsXML/observationId

diagram

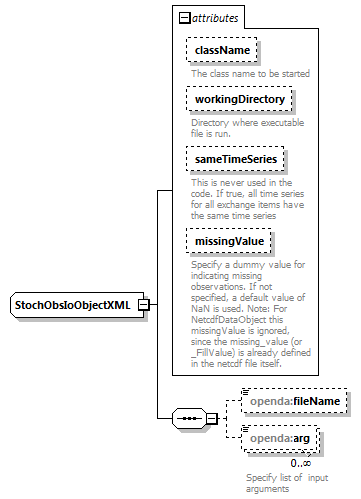

complexType StochObsIoObjectXML

diagram

attributes

Name   Type   Use   Default   Fixed   Annotation className   xs:string            documentation The class name to be started workingDirectory   xs:string   optional         documentation Directory where executable file is run. sameTimeSeries   xs:string   optional   false      documentation This is never used in the code. If true, all time series for all exchange items have the same time series missingValue   xs:double   optional         documentation Specify a dummy value for indicating missing observations. If not specified, a default value of NaN is used. Note: For NetcdfDataObject this missingValue is ignored, since the missing_value (or _FillValue) is already defined in the netcdf file itself.

attribute StochObsIoObjectXML/@className

annotation

documentation The class name to be started

attribute StochObsIoObjectXML/@workingDirectory

annotation

documentation Directory where executable file is run.

attribute StochObsIoObjectXML/@sameTimeSeries

annotation

documentation This is never used in the code. If true, all time series for all exchange items have the same time series

attribute StochObsIoObjectXML/@missingValue

annotation

documentation Specify a dummy value for indicating missing observations. If not specified, a default value of NaN is used. Note: For NetcdfDataObject this missingValue is ignored, since the missing_value (or _FillValue) is already defined in the netcdf file itself.

element StochObsIoObjectXML/fileName

diagram

element StochObsIoObjectXML/arg

diagram
annotation	documentation Specify list of  input arguments

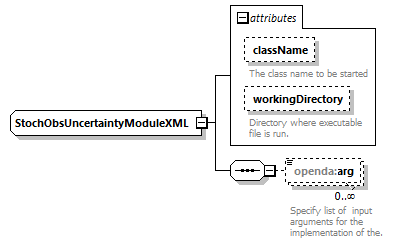

complexType StochObsUncertaintyModuleXML

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation className   xs:string            documentation The class name to be started workingDirectory   xs:string   optional         documentation Directory where executable file is run.

attribute StochObsUncertaintyModuleXML/@className

annotation

documentation The class name to be started

attribute StochObsUncertaintyModuleXML/@workingDirectory

annotation

documentation Directory where executable file is run.

element StochObsUncertaintyModuleXML/arg

diagram
annotation	documentation Specify list of  input arguments for the implementation of the.
