Schema noosObservations.xsd

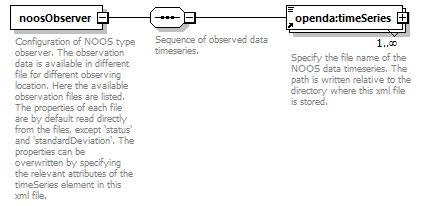

element noosObserver

diagram

annotation

documentation Configuration of NOOS type observer. The observation data is available in different file for different observing location. Here the available observation files are listed. The properties of each file are by default read directly from the files, except 'status' and 'standardDeviation'. The properties can be overwritten by specifying the relevant attributes of the timeSeries element in this xml file.

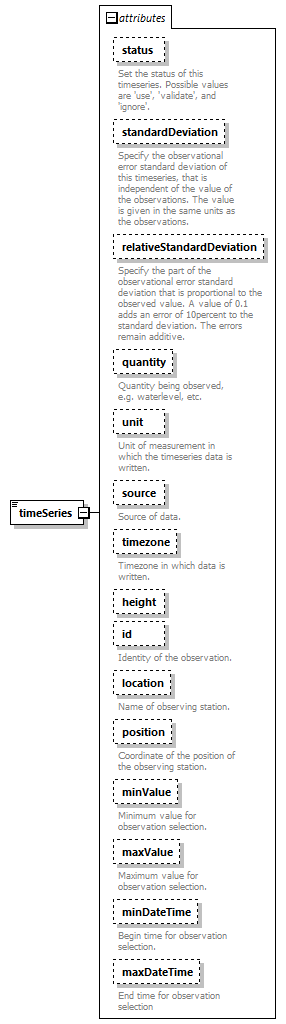

element timeSeries

diagram

attributes

Name   Type   Use   Default   Fixed   Annotation status   derived by: xs:string   optional   use      documentation Set the status of this timeseries. Possible values are 'use', 'validate', and 'ignore'. standardDeviation   xs:float   optional   0.05      documentation Specify the observational error standard deviation of this timeseries, that is independent of the value of the observations. The value is given in the same units as the observations. relativeStandardDeviation   xs:float   optional   0.0      documentation Specify the part of the observational error standard deviation that is proportional to the observed value. A value of 0.1 adds an error of 10percent to the standard deviation. The errors remain additive. quantity   xs:string   optional         documentation Quantity being observed, e.g. waterlevel, etc. unit   xs:string   optional         documentation Unit of measurement in which the timeseries data is written. source   xs:string   optional         documentation Source of data. timezone   xs:string   optional         documentation Timezone in which data is written. height   xs:string   optional         id               documentation Identity of the observation. location   derived by: xs:string   optional         documentation Name of observing station. position   xs:string   optional         documentation Coordinate of the position of the observing station. minValue               documentation Minimum value for observation selection. maxValue               documentation Maximum value for observation selection. minDateTime               documentation Begin time for observation selection. maxDateTime               documentation End time for observation selection

attribute timeSeries/@status

annotation

documentation Set the status of this timeseries. Possible values are 'use', 'validate', and 'ignore'.

attribute timeSeries/@standardDeviation

annotation

documentation Specify the observational error standard deviation of this timeseries, that is independent of the value of the observations. The value is given in the same units as the observations.

attribute timeSeries/@relativeStandardDeviation

annotation

documentation Specify the part of the observational error standard deviation that is proportional to the observed value. A value of 0.1 adds an error of 10percent to the standard deviation. The errors remain additive.

attribute timeSeries/@quantity

annotation

documentation Quantity being observed, e.g. waterlevel, etc.

attribute timeSeries/@unit

annotation

documentation Unit of measurement in which the timeseries data is written.

attribute timeSeries/@source

annotation

documentation Source of data.

attribute timeSeries/@timezone

annotation

documentation Timezone in which data is written.

attribute timeSeries/@height

---

attribute timeSeries/@id

annotation

documentation Identity of the observation.

attribute timeSeries/@location

annotation

documentation Name of observing station.

attribute timeSeries/@position

annotation

documentation Coordinate of the position of the observing station.

attribute timeSeries/@minValue

annotation

documentation Minimum value for observation selection.

attribute timeSeries/@maxValue

annotation

documentation Maximum value for observation selection.

attribute timeSeries/@minDateTime

annotation

documentation Begin time for observation selection.

attribute timeSeries/@maxDateTime

annotation

documentation End time for observation selection
