Schema mapsNoiseModel.xsd

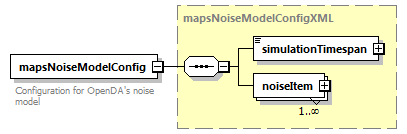

element mapsNoiseModelConfig

diagram
annotation	documentation Configuration for OpenDA's noise model

complexType mapsNoiseModelConfigXML

diagram

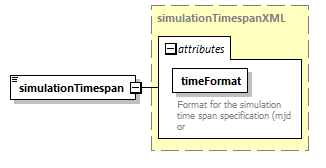

element mapsNoiseModelConfigXML/simulationTimespan

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation timeFormat   xs:string   required         documentation Format for the simulation time span specification (mjd or

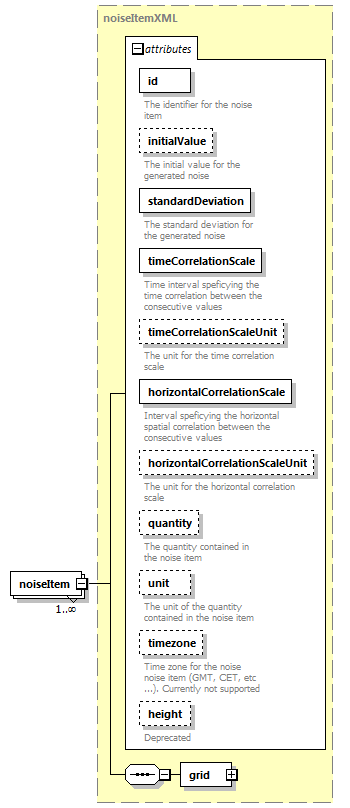

element mapsNoiseModelConfigXML/noiseItem

diagram

attributes

Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         documentation The identifier for the noise item initialValue   xs:double   optional   0.0      documentation The initial value for the generated noise standardDeviation   xs:double   required         documentation The standard deviation for the generated noise timeCorrelationScale   xs:double   required         documentation Time interval speficying the time correlation between the consecutive values timeCorrelationScaleUnit   timeCorrelationScaleUnitXML   optional   days      documentation The unit for the time correlation scale horizontalCorrelationScale   xs:double   required         documentation Interval speficying the horizontal spatial correlation between the consecutive values horizontalCorrelationScaleUnit   horizontalCorrelationScaleUnitXML   optional   m      documentation The unit for the horizontal correlation scale quantity   xs:string   optional         documentation The quantity contained in the noise item unit   xs:string   optional         documentation The unit of the quantity contained in the noise item timezone   xs:string   optional         documentation Time zone for the noise noise item (GMT, CET, etc ...). Currently not supported height   xs:string   optional         documentation Deprecated

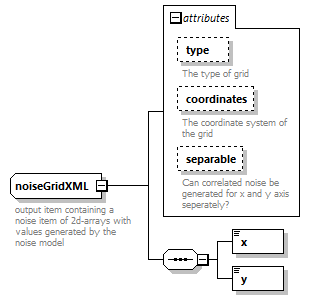

complexType noiseGridXML

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation type   noiseGridTypeXML   optional   cartesian      documentation The type of grid coordinates   noiseGridCoordSystemXML   optional   xy      documentation The coordinate system of the grid separable   xs:boolean   optional   false      documentation Can correlated noise be generated for x and y axis seperately?
annotation	documentation output item containing a noise item of 2d-arrays with values generated by the noise model

attribute noiseGridXML/@type

annotation

documentation The type of grid

attribute noiseGridXML/@coordinates

annotation

documentation The coordinate system of the grid

attribute noiseGridXML/@separable

annotation

documentation Can correlated noise be generated for x and y axis seperately?

element noiseGridXML/x

diagram

element noiseGridXML/y

diagram

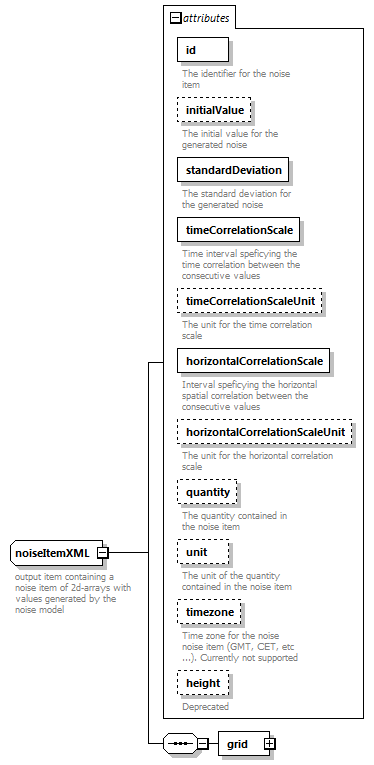

complexType noiseItemXML

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string   required         documentation The identifier for the noise item initialValue   xs:double   optional   0.0      documentation The initial value for the generated noise standardDeviation   xs:double   required         documentation The standard deviation for the generated noise timeCorrelationScale   xs:double   required         documentation Time interval speficying the time correlation between the consecutive values timeCorrelationScaleUnit   timeCorrelationScaleUnitXML   optional   days      documentation The unit for the time correlation scale horizontalCorrelationScale   xs:double   required         documentation Interval speficying the horizontal spatial correlation between the consecutive values horizontalCorrelationScaleUnit   horizontalCorrelationScaleUnitXML   optional   m      documentation The unit for the horizontal correlation scale quantity   xs:string   optional         documentation The quantity contained in the noise item unit   xs:string   optional         documentation The unit of the quantity contained in the noise item timezone   xs:string   optional         documentation Time zone for the noise noise item (GMT, CET, etc ...). Currently not supported height   xs:string   optional         documentation Deprecated
annotation	documentation output item containing a noise item of 2d-arrays with values generated by the noise model

attribute noiseItemXML/@id

annotation

documentation The identifier for the noise item

attribute noiseItemXML/@initialValue

annotation

documentation The initial value for the generated noise

attribute noiseItemXML/@standardDeviation

annotation

documentation The standard deviation for the generated noise

attribute noiseItemXML/@timeCorrelationScale

annotation

documentation Time interval speficying the time correlation between the consecutive values

attribute noiseItemXML/@timeCorrelationScaleUnit

annotation

documentation The unit for the time correlation scale

attribute noiseItemXML/@horizontalCorrelationScale

annotation

documentation Interval speficying the horizontal spatial correlation between the consecutive values

attribute noiseItemXML/@horizontalCorrelationScaleUnit

annotation

documentation The unit for the horizontal correlation scale

attribute noiseItemXML/@quantity

annotation

documentation The quantity contained in the noise item

attribute noiseItemXML/@unit

annotation

documentation The unit of the quantity contained in the noise item

attribute noiseItemXML/@timezone

annotation

documentation Time zone for the noise noise item (GMT, CET, etc ...). Currently not supported

attribute noiseItemXML/@height

annotation

documentation Deprecated

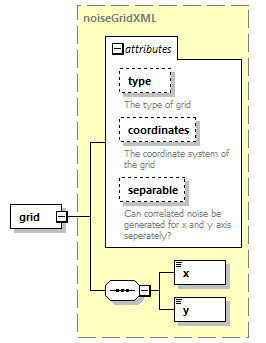

element noiseItemXML/grid

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation type   noiseGridTypeXML   optional   cartesian      documentation The type of grid coordinates   noiseGridCoordSystemXML   optional   xy      documentation The coordinate system of the grid separable   xs:boolean   optional   false      documentation Can correlated noise be generated for x and y axis seperately?

simpleType coordinateAxisXML

annotation

documentation Definition of the points along a coordinate axis (all points, or: start,next,...,end)

simpleType horizontalCorrelationScaleUnitXML

---

simpleType noiseGridCoordSystemXML

---

simpleType noiseGridTypeXML

---

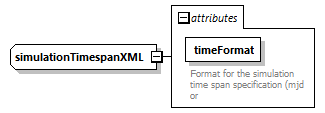

complexType simulationTimespanXML

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation timeFormat   xs:string   required         documentation Format for the simulation time span specification (mjd or

attribute simulationTimespanXML/@timeFormat

annotation

documentation Format for the simulation time span specification (mjd or

simpleType timeCorrelationScaleUnitXML

---

simpleType timespanFormatXML

---

simpleType timespanXML

---

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
