Schema griddedFullSearchConfig.xsd

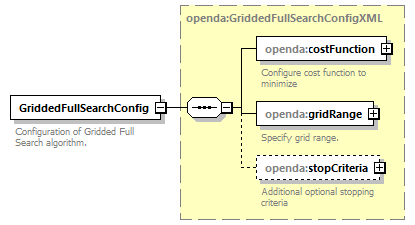

element GriddedFullSearchConfig

diagram
annotation	documentation Configuration of Gridded Full Search algorithm.

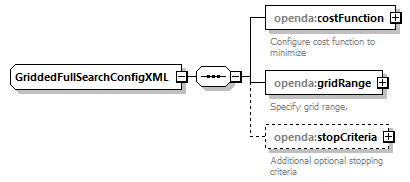

complexType GriddedFullSearchConfigXML

diagram

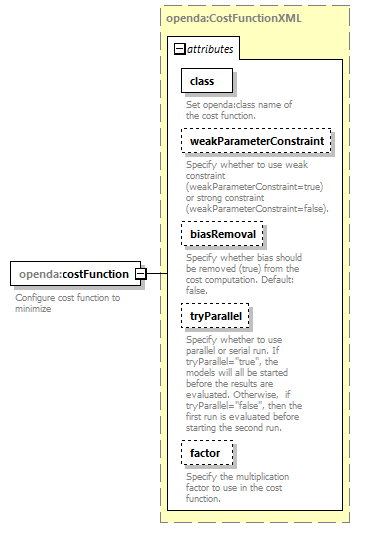

element GriddedFullSearchConfigXML/costFunction

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation class   derived by: xs:string   required         documentation Set openda:class name of the cost function. weakParameterConstraint   xs:boolean   optional   false      documentation Specify whether to use weak constraint (weakParameterConstraint=true) or strong constraint (weakParameterConstraint=false). biasRemoval               documentation Specify whether bias should be removed (true) from the cost computation. Default: false. tryParallel   xs:boolean   optional   false      documentation Specify whether to use parallel or serial run. If tryParallel="true", the models will all be started before the results are evaluated. Otherwise,  if tryParallel="false", then the first run is evaluated before starting the second run. factor   xs:double   optional   0.5      documentation Specify the multiplication factor to use in the cost function.
annotation	documentation Configure cost function to minimize

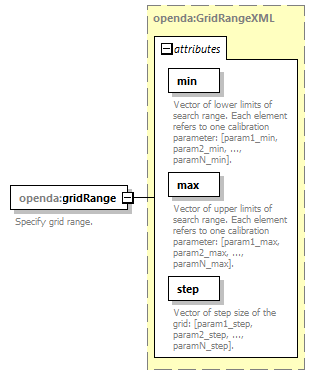

element GriddedFullSearchConfigXML/gridRange

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation min   xs:string   required         documentation Vector of lower limits of search range. Each element refers to one calibration parameter: [param1_min, param2_min, ..., paramN_min]. max   xs:string   required         documentation Vector of upper limits of search range. Each element refers to one calibration parameter: [param1_max, param2_max, ..., paramN_max]. step   xs:string   required         documentation Vector of step size of the grid: [param1_step, param2_step, ..., paramN_step].
annotation	documentation Specify grid range.

element GriddedFullSearchConfigXML/stopCriteria

diagram
annotation	documentation Additional optional stopping criteria

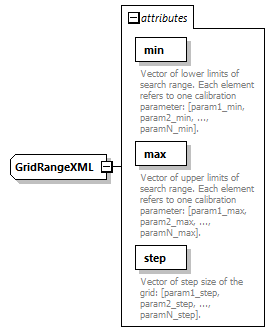

complexType GridRangeXML

diagram

attributes

Name   Type   Use   Default   Fixed   Annotation min   xs:string   required         documentation Vector of lower limits of search range. Each element refers to one calibration parameter: [param1_min, param2_min, ..., paramN_min]. max   xs:string   required         documentation Vector of upper limits of search range. Each element refers to one calibration parameter: [param1_max, param2_max, ..., paramN_max]. step   xs:string   required         documentation Vector of step size of the grid: [param1_step, param2_step, ..., paramN_step].

attribute GridRangeXML/@min

annotation

documentation Vector of lower limits of search range. Each element refers to one calibration parameter: [param1_min, param2_min, ..., paramN_min].

attribute GridRangeXML/@max

annotation

documentation Vector of upper limits of search range. Each element refers to one calibration parameter: [param1_max, param2_max, ..., paramN_max].

attribute GridRangeXML/@step

annotation

documentation Vector of step size of the grid: [param1_step, param2_step, ..., paramN_step].

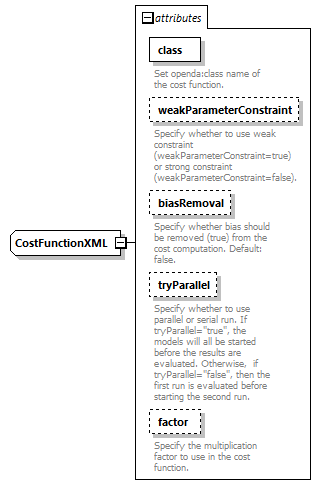

complexType CostFunctionXML

diagram

attributes

Name   Type   Use   Default   Fixed   Annotation class   derived by: xs:string   required         documentation Set openda:class name of the cost function. weakParameterConstraint   xs:boolean   optional   false      documentation Specify whether to use weak constraint (weakParameterConstraint=true) or strong constraint (weakParameterConstraint=false). biasRemoval               documentation Specify whether bias should be removed (true) from the cost computation. Default: false. tryParallel   xs:boolean   optional   false      documentation Specify whether to use parallel or serial run. If tryParallel="true", the models will all be started before the results are evaluated. Otherwise,  if tryParallel="false", then the first run is evaluated before starting the second run. factor   xs:double   optional   0.5      documentation Specify the multiplication factor to use in the cost function.

attribute CostFunctionXML/@class

annotation

documentation Set openda:class name of the cost function.

attribute CostFunctionXML/@weakParameterConstraint

annotation

documentation Specify whether to use weak constraint (weakParameterConstraint=true) or strong constraint (weakParameterConstraint=false).

attribute CostFunctionXML/@biasRemoval

annotation

documentation Specify whether bias should be removed (true) from the cost computation. Default: false.

attribute CostFunctionXML/@tryParallel

annotation

documentation Specify whether to use parallel or serial run. If tryParallel="true", the models will all be started before the results are evaluated. Otherwise,  if tryParallel="false", then the first run is evaluated before starting the second run.

attribute CostFunctionXML/@factor

annotation

documentation Specify the multiplication factor to use in the cost function.

complexType additionalStopCriteria

diagram
annotation	documentation Additional optional stopping criteria.

element additionalStopCriteria/stopCriterion

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation threshold      required         documentation Threshold value of the stopping parameter. class      required         documentation Java class of the corresponding stopping criterion
annotation	documentation A stopping criterion

attribute additionalStopCriteria/stopCriterion/@threshold

annotation

documentation Threshold value of the stopping parameter.

attribute additionalStopCriteria/stopCriterion/@class

annotation

documentation Java class of the corresponding stopping criterion
