Schema bmiModelFactoryConfig.xsd

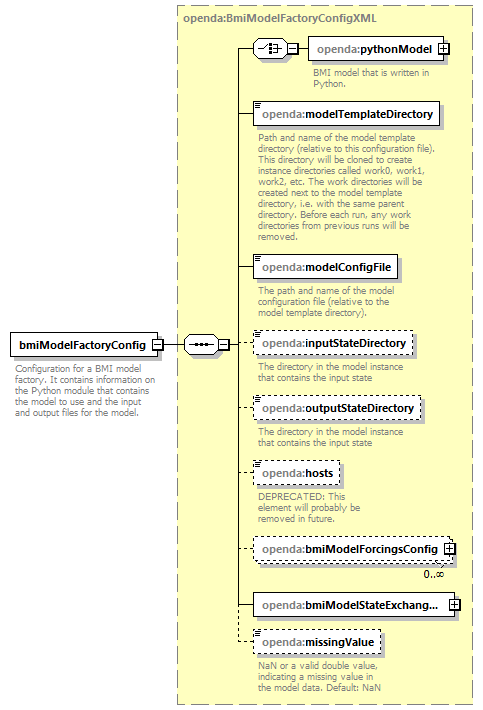

element bmiModelFactoryConfig

diagram
annotation	documentation Configuration for a BMI model factory. It contains information on the Python module that contains the model to use and the input and output files for the model.

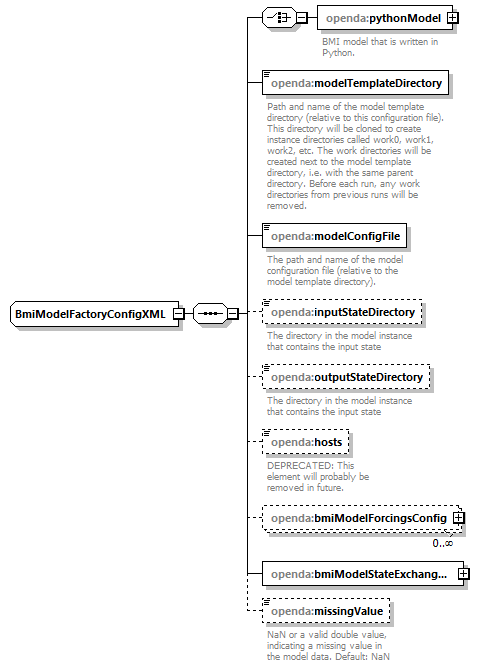

complexType BmiModelFactoryConfigXML

diagram

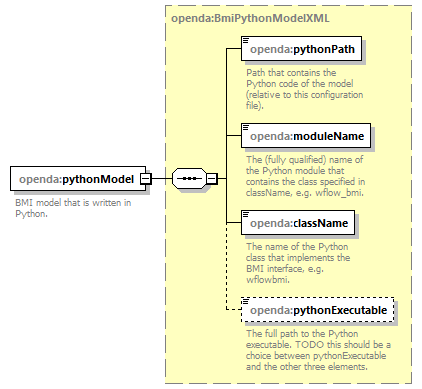

element BmiModelFactoryConfigXML/pythonModel

diagram
annotation	documentation BMI model that is written in Python.

element BmiModelFactoryConfigXML/modelTemplateDirectory

diagram
annotation	documentation Path and name of the model template directory (relative to this configuration file). This directory will be cloned to create instance directories called work0, work1, work2, etc. The work directories will be created next to the model template directory, i.e. with the same parent directory. Before each run, any work directories from previous runs will be removed.

element BmiModelFactoryConfigXML/modelConfigFile

diagram
annotation	documentation The path and name of the model configuration file (relative to the model template directory).

element BmiModelFactoryConfigXML/inputStateDirectory

diagram
annotation	documentation The directory in the model instance that contains the input state

element BmiModelFactoryConfigXML/outputStateDirectory

diagram
annotation	documentation The directory in the model instance that contains the input state

element BmiModelFactoryConfigXML/hosts

diagram
annotation	documentation DEPRECATED: This element will probably be removed in future.

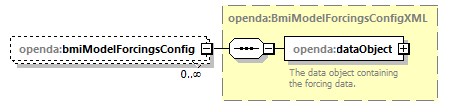

element BmiModelFactoryConfigXML/bmiModelForcingsConfig

diagram

element BmiModelFactoryConfigXML/bmiModelStateExchangeItems

diagram

element BmiModelFactoryConfigXML/missingValue

diagram
annotation	documentation NaN or a valid double value, indicating a missing value in the model data. Default: NaN

complexType BmiModelForcingsConfigXML

diagram

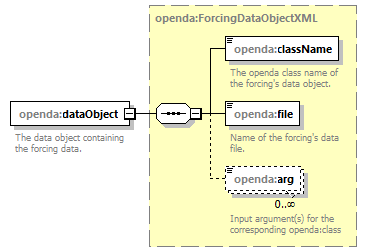

element BmiModelForcingsConfigXML/dataObject

diagram
annotation	documentation The data object containing the forcing data.

complexType BmiModelStateExchangeItemXML

diagram

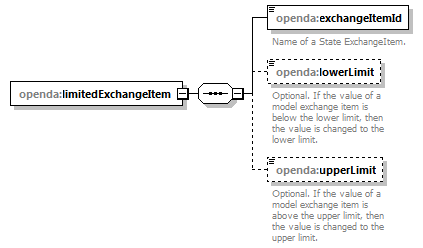

element BmiModelStateExchangeItemXML/limitedExchangeItem

diagram

element BmiModelStateExchangeItemXML/limitedExchangeItem/exchangeItemId

diagram
annotation	documentation Name of a State ExchangeItem.

element BmiModelStateExchangeItemXML/limitedExchangeItem/lowerLimit

diagram
annotation	documentation Optional. If the value of a model exchange item is below the lower limit, then the value is changed to the lower limit.

element BmiModelStateExchangeItemXML/limitedExchangeItem/upperLimit

diagram
annotation	documentation Optional. If the value of a model exchange item is above the upper limit, then the value is changed to the upper limit.

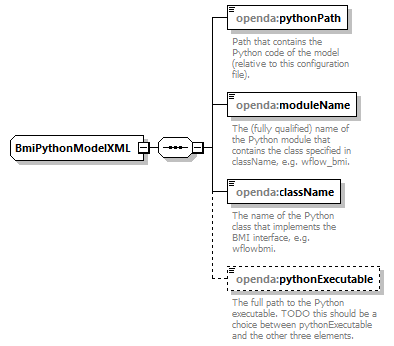

complexType BmiPythonModelXML

diagram

element BmiPythonModelXML/pythonPath

diagram
annotation	documentation Path that contains the Python code of the model (relative to this configuration file).

element BmiPythonModelXML/moduleName

diagram
annotation	documentation The (fully qualified) name of the Python module that contains the class specified in className, e.g. wflow_bmi.

element BmiPythonModelXML/className

diagram
annotation	documentation The name of the Python class that implements the BMI interface, e.g. wflowbmi.

element BmiPythonModelXML/pythonExecutable

diagram
annotation	documentation The full path to the Python executable. TODO this should be a choice between pythonExecutable and the other three elements.

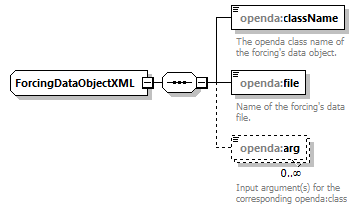

complexType ForcingDataObjectXML

diagram

element ForcingDataObjectXML/className

diagram
annotation	documentation The openda class name of the forcing's data object.

element ForcingDataObjectXML/file

diagram
annotation	documentation Name of the forcing's data file.

element ForcingDataObjectXML/arg

diagram
annotation	documentation Input argument(s) for the corresponding openda:class
